Pewag Grade 10 Chain Components

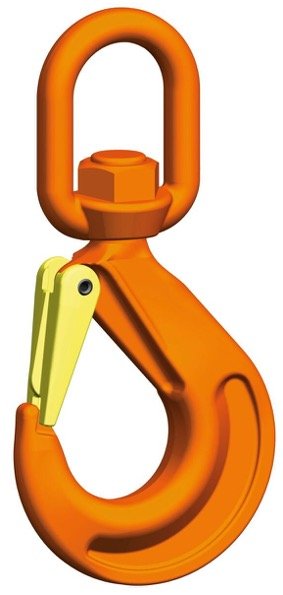

CE-marking and BG-approval are essential features of this pewag safety component. The swivel hook may be used universally and comes with a die-forged safety catch that locks into the tip of the hook, thereby providing excellent protection against lateral shifts. The WSBW swivel hook is suitable for the Connex systems, but also offers numerous other universal connection options thanks to its large swivel casing. Rotatability under load is ensured by an axial bearing design and comes as a special plus. The maximum operating temperature for this product is 120 °C. The product is manufactured according to EN 1677‑2 with the mechanical values for G10. This product is suitable for straight pull only. Also note that the tip of the hook and the safety catch must not be placed under load. The swivel hook should not be used in the welded system. Assembly of the safety catch set is simple and quick and does not require any special tools. It consists of a die-forged safety catch, a stainless steel spring and a safety sleeve – after all, all good things come in threes!
A full operating manual contains everything you need to know about the versatile application options of this swivel hook. The safety catch set SFGW is also available as a spare parts set.
|Load capacity [kg]
|Weight in KG
