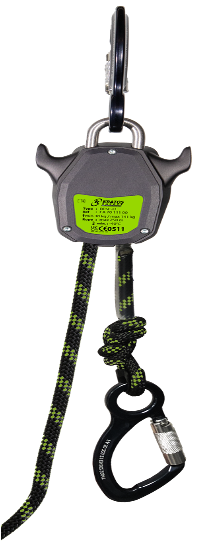

The Kratos RES-Q 2 Downward Evacuation Device, 20 m is designed for quick and controlled rescue operations from height. It combines an automatic, redundant braking system with semi-static kernmantle rope to give rescuers a simple, reliable way to lower a person to safety.
Key Features
- Optimised for quick downward evacuation during rescue operations.
- Controlled descent speed of < 2 m/sec, regardless of the load (up to 141 kg).
- Supplied with 9.6 mm semi-static kernmantle rope assembled to the device.
- Rope ends finished with double figure-of-eight knots for secure karabiner connection.
- Delivered with two hooks, ref. FA 50 220 21.
- Automatic and redundant brake system for added safety.
Technical Specifications
| Manufacturer | Kratos Safety |
|---|---|
| Model | RES-Q 2 |
| Rope Length | 20 m (ref. FA 70 111 20) |
| Rope Type | 9.6 mm semi-static kernmantle rope |
| Maximum Descent Height | 250 m |
| Maximum Number of Users | 1 user, up to 141 kg |
| Descent Speed | < 2 m/sec (independent of load, up to 141 kg) |
| Brake System | Automatic and redundant |
| Inspection Interval | Once a year or every 2000 m of rope |
| Other Available Lengths | 40 m (ref. FA 70 111 40) |
| Compliance | EN 341:2011-1B |
Compatible References & Rope Options
For specific lengths or replacement components, use the following references:
- FA 70 111 00: Device only.
- FA 70 109 99: Kernmantle rope per metre.
- FA 70 109 98: Required length of rope with double figure-of-eight knots and automatic locking hook.
Typical Applications
The Kratos RES-Q 2 downward evacuation device is intended for emergency rescue and controlled evacuation from height, for example:
- Rescuing a worker suspended on a fall arrest system.
- Evacuation from platforms, roofs or elevated workstations.
- Rescue in industrial plants, construction sites and maintenance areas.
Inspection & Maintenance
The device and rope should be inspected by a competent person at least once a year or every 2000 m of rope used, whichever comes first. Always refer to the manufacturer’s instructions for detailed inspection and maintenance guidance.
Instructions for use can be downloaded from the Attachment tab on this page.
How Prolift Can Help
Prolift Handling supplies a full range of height safety and rescue equipment from Kratos Safety and other leading brands. We can help you select a complete rescue kit, provide training in the safe use of evacuation devices and arrange periodic inspection and certification.
For advice on choosing the right rescue solution, please contact our team:
📞 01-4584836
✉️ websales@prolift.ie
