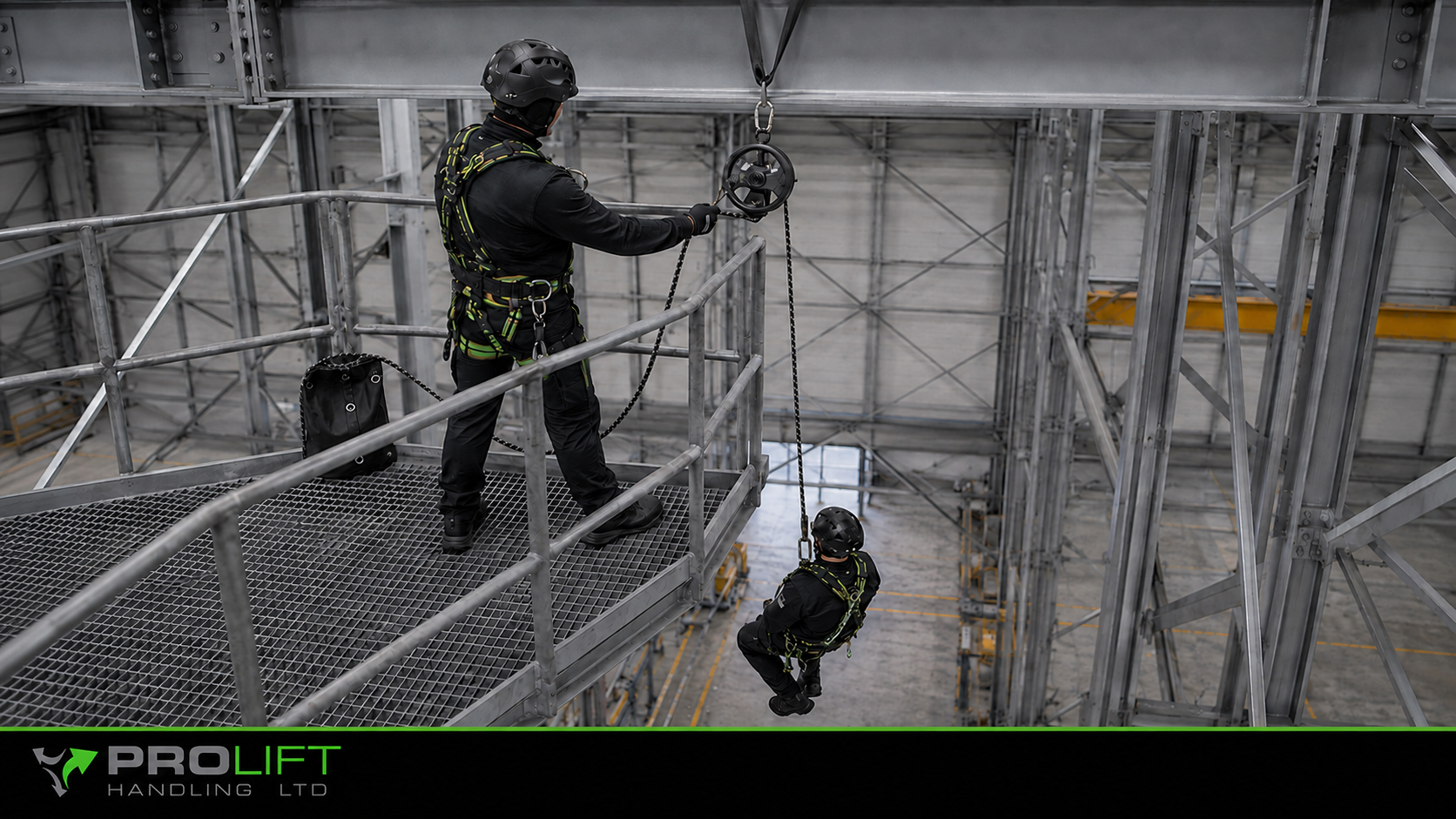

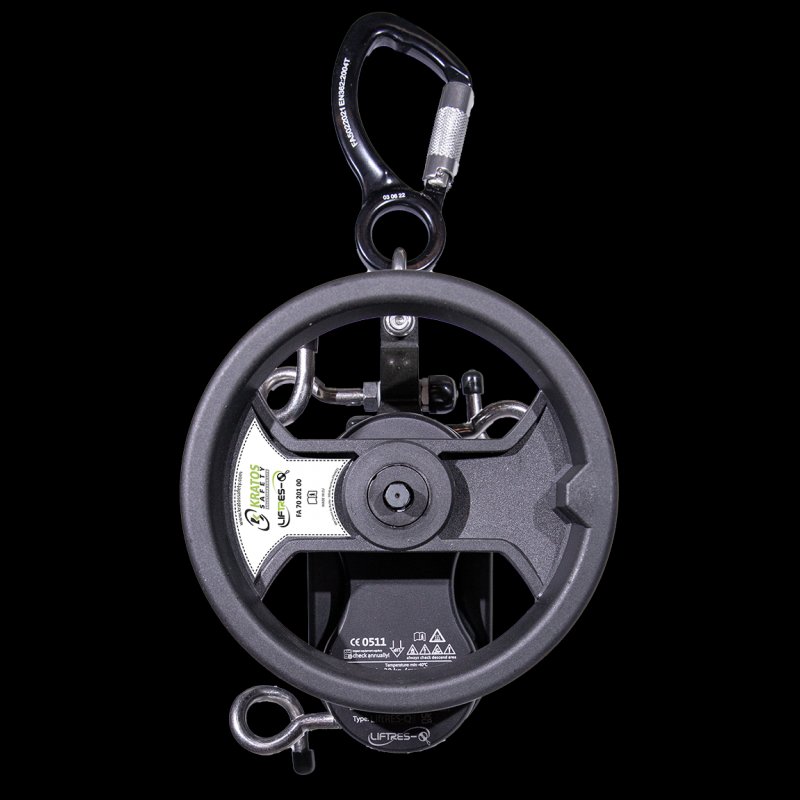

The Kratos LiftRes-Q is designed for the controlled raising and lowering of people during rescue and evacuation operations. This model is supplied with a 20-metre semi-static kernmantle rope system for work-at-height rescue applications.
Manufactured from aluminium alloy and high-strength steel, the LiftRes-Q combines an automatic redundant braking system with controlled descent speeds. It can accommodate up to two users, subject to a combined maximum load of 225 kg.
Key Features
- Controlled descent and raising during rescue operations
- Automatic and redundant braking system
- Controlled descent speed of approximately 1–1.5 m/second, depending on load
- Suitable for up to two users with a combined maximum load of 225 kg
- May be operated with an electric screwdriver for longer ascents
- Durable aluminium-alloy and high-strength-steel construction
- Supplied with a 20 m semi-static rope assembly and locking connectors
Technical Specifications
| Rope length | 20 m |
| Controlled descent speed | Approximately 1–1.5 m/second, depending on load |
| Maximum load | 225 kg |
| Maximum users | Two users within the 225 kg combined limit |
| Device height capability | Up to 500 m, subject to the fitted rope length and manufacturer’s instructions |
| Brake system | Automatic and redundant |
| Inspection interval | Annually or after 6,000 m of rope travel |
| Compliance | EN 341:2011 Class 1A and EN 1496:2017 Class B |
Typical Applications
Suitable for planned rescue and evacuation arrangements in industrial facilities, maintenance areas, towers, construction environments and other workplaces where personnel may need to be safely raised or lowered.
